Automatic reset Phase sequence protect relay overvoltage and undervoltage relay module
Automatic reset Phase sequence protect relay overvoltage and undervoltage relay module
Automatic reset Phase sequence protect relay overvoltage and undervoltage relay module

Automatic reset Phase sequence protect relay overvoltage and undervoltage relay module

  • Item No.ZHRV2-45
    MOQ500 Pole
Tag  sourcing
Customization:

3d-iconOnline customization Customise Now

Customized logo (Min. Order: 500 Pole)

Customized packaging (Min. Order: 500 Pole)

Add Request About This Product
Max file 5MB each
If lager file please send us email

Quantity:

From $15.005.00 / Pole
$7,500.00
You save $ -7,500.00
Trade Assuranceprotects your orders
On-time Dispatch Guarantee
On-time dispatch is guaranteed or you will be eligible to claim platform compensation.
Refund Policy
If the shipment is delayed or product quality differs from what are specified in the online order, you can claim for a refund.
Quick refund: If you can apply for a refund within two hours of making a payment, you will receive a refund immediately.

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Quick Details
Count input signal AC/DC 20-450V
Rated supply voltage (3-phase 3-wire)220V-450V AC
Place of Origin CN;ZHE
Usage Overvoltage and Undervolatage protection
Brand Name Sofielec
Frequency50/60HZ
Theory Voltage Relay
Model Number ZHRV2-45
Under-voltage action value 175V
Under-voltage reset value 180V
Action delay 0.1s
DIN rail Standard Width35mm(IEC/EN60715)
Contact configuration capacity 32A,40A,63A,80A/Resistive
contact load Low Power
Maximum load power 7kVA(40A),13kVA(63A),17kVA(40A)
Rest delay 1s
SizeMiniature
Protect Feature Sealed

Packaging & Delivery

Selling Units:
Pole

Automatic reset Phase sequence protect relay overvoltage and undervoltage relay module

Product Show

01






Product Description

Application:

Used in air conditioning units, elevator machine room, pumps, fans, and other motor control applications, as protection of over-voltage, under-voltage, phase loss, phase sequence, 3-phase imbalance. When the power supply is abnormal, stop supply to protect the equipment.

Features:

Build-in mircoprocessor, true RMS measurement, voltage measurement accuracy<=1%. Measuring frequency 45Hz~65Hz, botton setting. LCD displays voltage and fault information, protection can be turned on or off. Check 3-phase voltage value by botton, with counting and timing function. Record number and time of using devices. DIN rail mounting.

Rated supply voltage (3-phase 3-wire)220V-450V AC
Rated supply frequency50/60Hz
Phase failure and phase sequence≤0.5s
Delay error ±10%+0.1s
Measurement accuracy±1%/RMS
Data storage time10years
Maximum counting capacity999999
Maximum timing capacity9999 h 59 m
Maximum count frequency5Hz
Accumulated timing error≤0.001%
Count input signalAC/DC 20V-450V
Short circuit protector type and maximum ratingNT00-6A
IP ClassIP20
Class of pollution3
Altitude≤2000m
Allowable relative humidity≤50%(40℃)/no condensation
DIN rail StandardWidth 35mm(IEC/EN60715)









Related Products

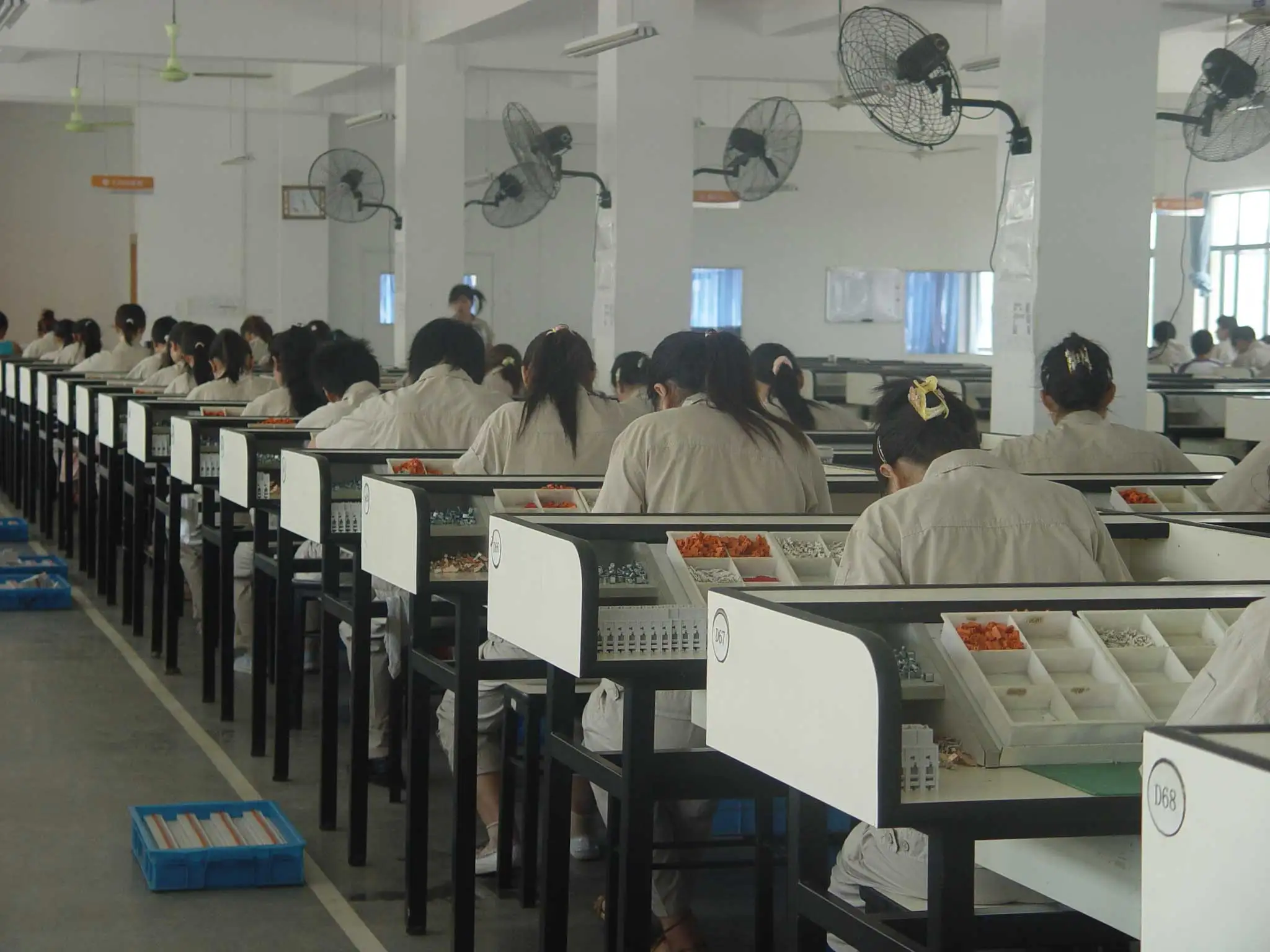

Company Profile
