Hot selling Phase sequence electric24v 220v relay

Product Show


Product Description


>> products show




Product Description



Used in air conditioning units, elevator machine room, pumps, fans, and other motor control applications, as protection of over-voltage, under-voltage, phase loss, phase sequence, 3-phase imbalance. When the power supply is abnormal, stop supply to protect the equipment.


Build-in mircoprocessor, true RMS measurement, voltage measurement accuracy<=1%. Measuring frequency 45Hz~65Hz, knob setting. LED indicator shows working status. Rated voltage three-phase three-wire 208V~440V & three-phase four-wire 120V~254V universal, N-phase phase failure protection, DIN rail mounting.

Rated supply voltage rangeP-P:AC 3×208→3×440V;P-N:AC 3×120→3×254V
Rated supply frequency50/60Hz
Phase failure and phase sequence≤0.5s
Delay error ±10%+0.1s
Measurement accuracy±1%/RMS
Data storage time10years
Maximum counting capacity999999
Maximum timing capacity9999 h 59 m
Maximum count frequency5Hz
Accumulated timing error≤0.001%
Count input signalAC/DC 20V-450V
Short circuit protector type and maximum ratingNT00-6A
IP ClassIP20
Class of pollution3
Allowable relative humidity≤50%(40℃)/no condensation
DIN rail StandardWidth 35mm(IEC/EN60715)

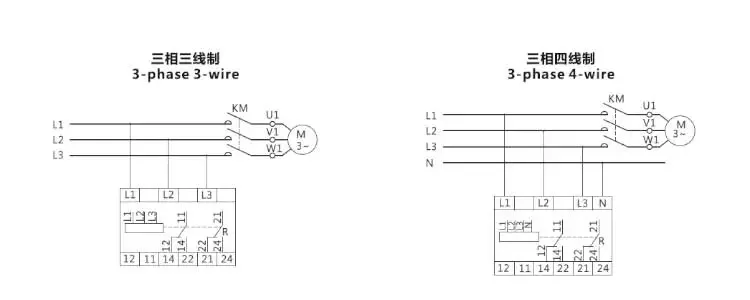

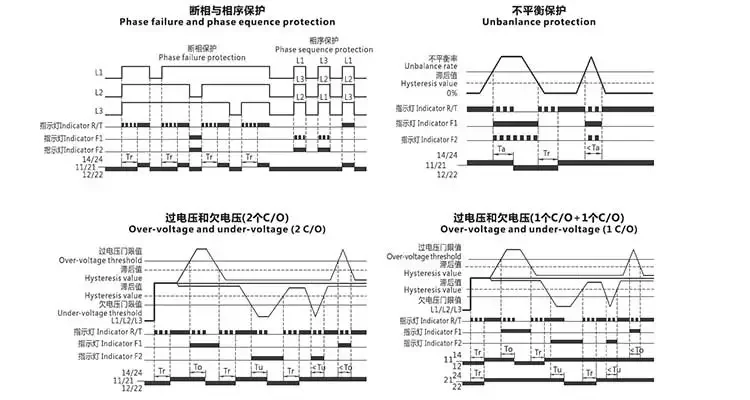

Function Diagram:
