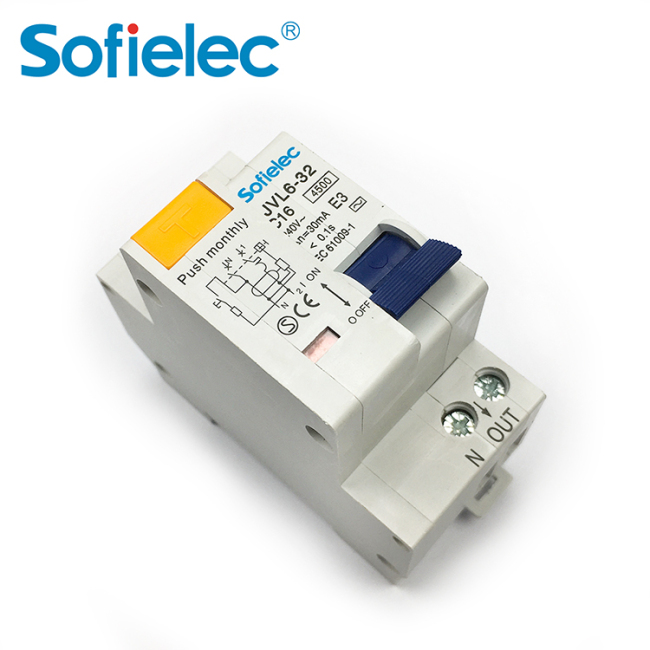

JVL16-32 England type 1P+N RCBO electronic type

Product Show






TypeElectronic type
Pole No.1P+N
Rated voltageAC 240V
Rated current(A)1, 2, 3, 4, 6, 10, 16, 20, 25, 32
Residual current charcteristicsAC, A
Tripping curveB, C, D
Rated shrt-circuit capacity10 kA
Rated frequency50/60 Hz
Rated residual operating current0.03, 0.1, 0.3 A
Tripping durationinstantaneous ≤0.1s
Elector-mechanical endurance

4,000 cycles

Connection terminal

Pillar terminal with clamp

Connection capacity

Rigid conductor 16 mm square

Terminal connection height: H=21.5 mm


On symmetrical DIN rail 35 mm

Panel mounting

Wiring Diagram

Construction and feature

1. Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.

2. Provides complementary protection against direct contact by human body.

3. Effectively protects electric equipment against insulating failure.

4. Provides comprehensive protection to household and commercial distribution systems.


Overload Current Protection Characteristics

Test ProcedureTypeTest CurrentInitial StateTripping or Non-tripping Time LimitExpected ResultRemark
aB, C, D1.13 Incoldt≥1 hno tripping
bB, C, D1.45 Inafter test at<1 htrippingCurrent in the 5s in the increase of stability
cB, C, D2.55 Incold1stripping
dB3 Incoldt≥0.1sno trippingTurn on the auxiliary switch to close the current
C5 In
D10 In
eB5 Incoldt<0.1strippingTurn on the auxiliary switch to close the current
C10 In
D20 In
The terminology "cold state" refes to that no load is carried before testing at the reference setting temperature.


Residual Current Action Breaker Time

typeIn/AIn/A Residual Current (I) Is Corresponding To The Following Breaking Time (S)
 AC type any value any value In 2 In 5 In 5A, 10A, 20A, 50A, 100A, 200A, 500A
 A type any value >0.01 1.4 In 2.8 In 7 In
    0.3 0.15 0.04 0.04 Max Break-time
        The gneral type RCBO whose current In is 0.03mA or less can use 0.25A instead of 5 In.
