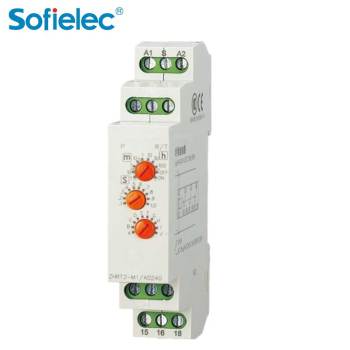

ZHRT2-M1 Sofielec time relay
Categories Time Relay Model ZHRT2-M1 Rated control supply voltage DC12V. AC/DC 24V ~24 Rated power consumption ≤1W Delay range 0.1s~100h Setting accuracy ≤5% Repeat accuracy ≤0.2% Repeat power- on interval ≥200ms Altitude ≤2000m Contact configuration capacity(A) 1C/O 16A;2C/O 16A;3C/O 8A,2C/O+1 instant C/O 8A+16 IP Class IP 20 Use category AC-15 Update Time 2021-10-19Detail Information
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessors, 0.1s~100h wide delay range, repeataccuracy ≤ 0.2% knob setting. LED indicator shows working status. with 10 different control modes for different electriacla control systems,variety of optional rated voltage. DIN-rail mounting.Function DiagramWiring DiagramDimensionsCompany
